| 加工定制：否 | 品牌：光林科技 | 型号：ASE-C |
| 通带波长范围：1525nm | 是否跨境货源：否 |

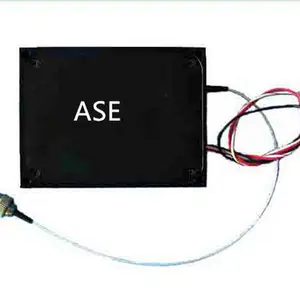

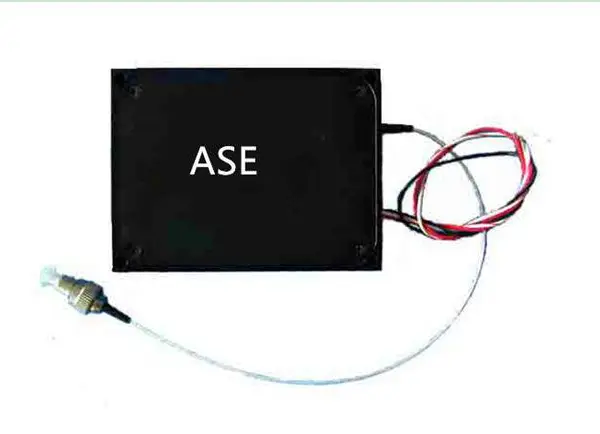

1525nm -1565nm ASE宽带光源模块
Specifications | ||
Parameter | Unit | Value |
operating wavelength | nm | 1525 ～1565 |
output power | dBm | 10.0 ～20.0 |
spectral density | dBm/nm | -8 ～ -2 |
Spectrum flatness | dB | ≤7 |
Spectrum stability | dBm/nm | ≤±0.005 (15 minutes) |
Output stability 1 | dB | ≤±0.005 (15 minutes) |
Output stability 2 | dB | ≤±0.01 (8 hour) |
Degree of polarization | dB | ≤0.2dB |
Fiber Type | - | SMF-28 |
Connector | - | FC/UPC，FC/APC or Specify |
Operating temperature | °C | 0 ～ +65 (-20 ～ +65extended range available) |
Storage temperature | °C | -20 ～+70 |
Operating Relative Humidity | % | 20～80 |
Input Power Supply | - | +3.3V~5.0V DC, Drive current >1000mA; ripple wave△V＜1% |
Power consumption | 25℃ | <1.5W (typ <1.0W ) |
Total Power consumption | <3W | |
Dimension (L×W×H) | mm | 100×70×19 |
