| 加工定制：是 | 品牌：光林 | 型号：DWDM |
| 通带波长范围：1550.12nm |

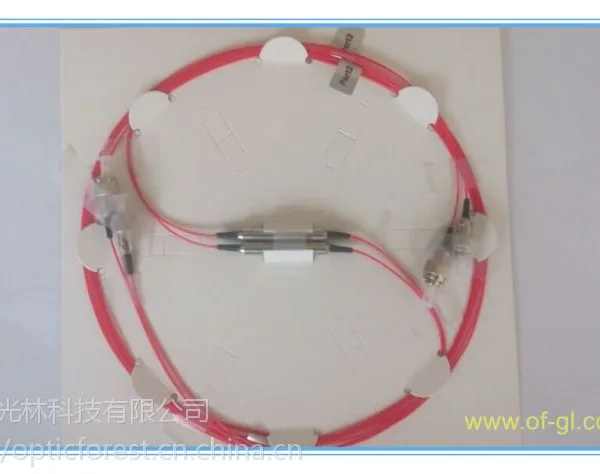

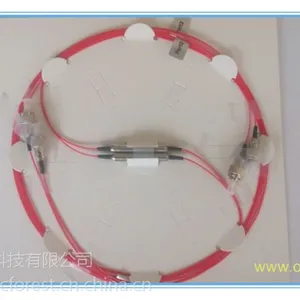

2W/10W大功率密集波分复用器DWDM
Parameters | |||
Channel Space(GHz) | 100，200 | ||
Channel Number | 1x1 | ||
Center Wavelength (nm) | ITU Grid | ||
Center Wavelength Accyracy(nm) | ± 0.05 | ||
Fiber Type | SMF-28e with 900um loose tube or customer specified | ||
IL (dB) | 0.7 | ||
Passband Ripple (dB) | 0.5 | ||
PDL (dB) | 0.2 | ||
***lation(dB) | Adjacent Channel | 25 | |
Non-Adjacent Channel | 40 | ||
PMD (ps) | 0.1 | ||
RL(dB) | 45 | ||
Directivity (dB) | 50 | ||
Maximum Optical Power (W) | 2, 5，10 | ||
Operating temperature (℃) | 0 ~ +70 | ||
Storage temperature (℃) | -40 ~ +85 | ||
Dimensions (LxWxH) (mm) | 5.5X35mm | ||
